OEM & Aftermarket Alloy Wheel Manufacturer in China
Five wheel technologies under one quality system. Whether you supply a tire & wheel distribution network, an off-road accessory chain or your own tuning brand, Rimax matches the manufacturing process to your vehicle segment, target price point and destination-market requirements.

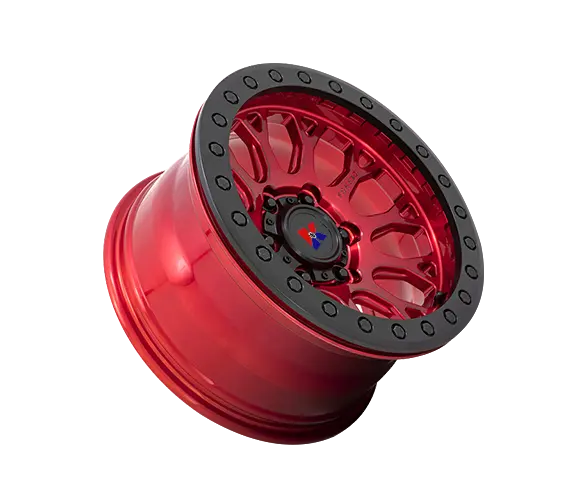

Offroad Wheels
Heavy-duty fitments with reinforced spoke roots and high load ratings for overlanding, trail and work-truck applications.
Explore

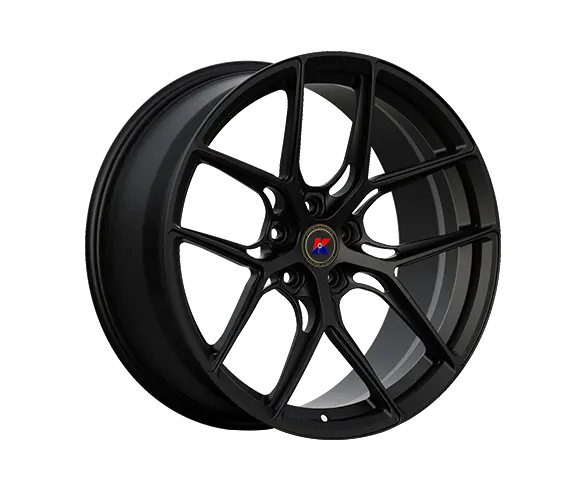

Aftermarket Wheels
Trend-driven designs in gloss black, machined face, brushed and polished finishes built for retail and e-commerce programs.
Explore

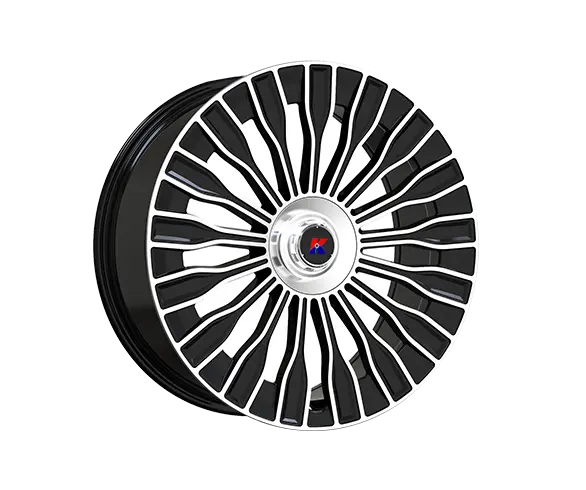

Replica Wheels
OE-inspired replacement designs engineered to original PCD, offset and center bore for true bolt-on, direct-fit replacement.
Explore

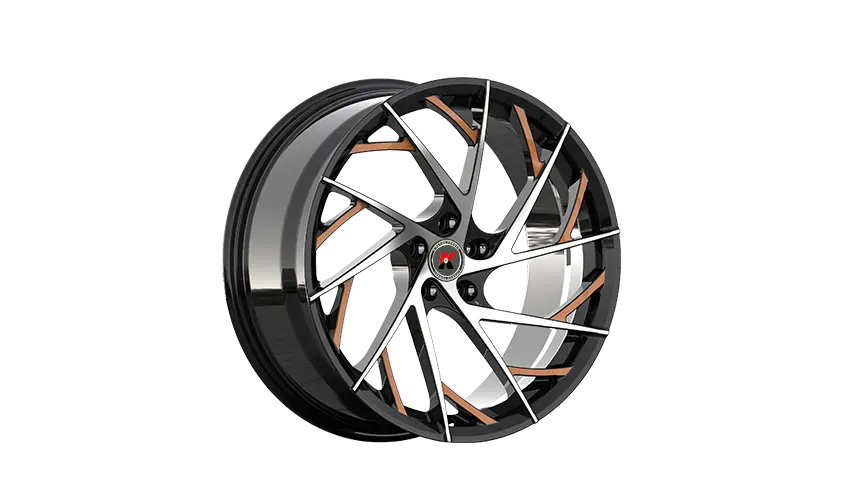

Flow Forming Wheels
Spun and pressure-rolled barrels deliver denser grain structure and reduced weight at a price close to cast wheels.
Explore

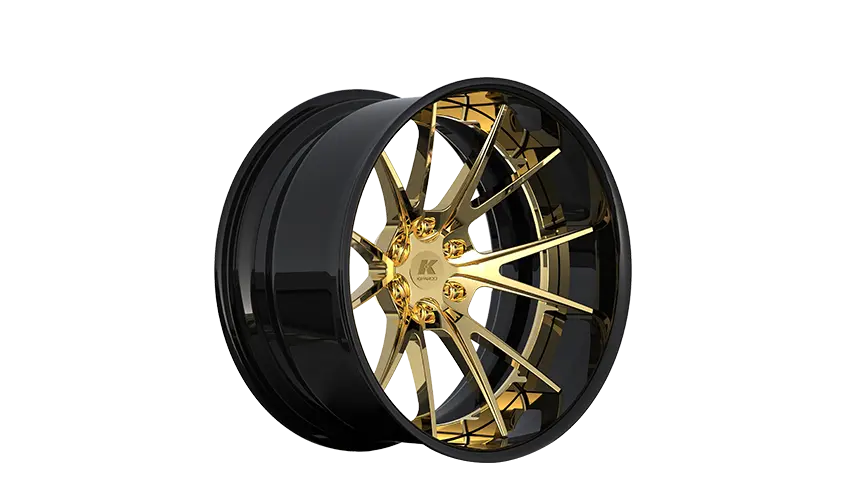

Forged Wheels
Monoblock and multi-piece forged wheels machined from billet for performance, luxury and motorsport builds.

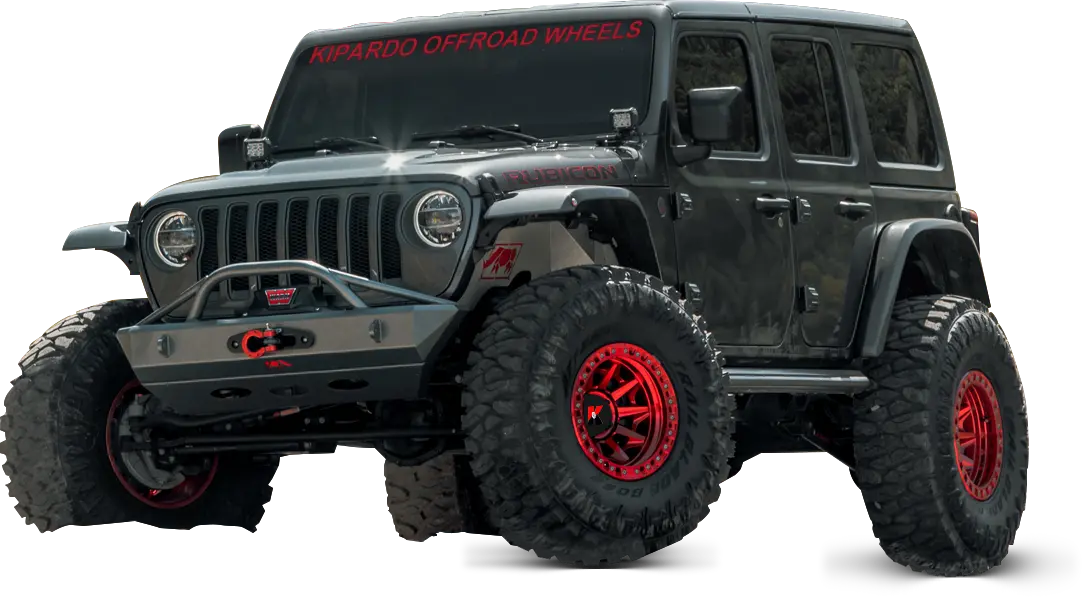

ExploreExplosive Hub Series: JWL-Verified Cast Wheels
Our newest series to date. Kipardo's JWL-verified casting wheel factory continuously releases new designs and colorways, giving distributors fresh, fast-moving SKUs that look right on everything from compact sedans to full-size SUVs.
- Alloy
- A356.2 Aluminum
- Process
- Low-Pressure Casting
- Heat Treatment
- T6 Solution & Aging
- Fitment
- PCD, ET & CB to Order
- Load Rating
- Engineered per Fitment
- Validation
- JWL / VIA Test Items
New Designs From Our Wheel Studio
Each new style is released with 3D renderings, fitment data and finish options, so your sales team can present it to dealers before the first container ships.
How a Rimax Wheel Is Made: Ingot to Export Pallet
Understanding the process helps you compare suppliers on facts, not photos. These are the eight stages every Rimax cast wheel passes through before it is cleared for shipment.
- 01
Melting & Degassing
A356.2 aluminum ingots are melted, refined and degassed to minimize hydrogen porosity before casting.
- 02
Low-Pressure Casting
Molten alloy fills the mold from below under controlled pressure, producing dense, uniform spokes and rim flanges.
- 03
X-Ray Inspection
Radiographic checks reveal internal shrinkage or porosity in critical zones such as the hub pad and spoke roots.
- 04
T6 Heat Treatment
Solution treatment, quenching and artificial aging raise tensile and yield strength for long-term fatigue life.
- 05
CNC Machining
Hub face, bolt holes, center bore and bead seats are machined to tight tolerances for true running and balance.
- 06
Surface Finishing
Pre-treatment, powder primer, color and clear coats, with diamond-cut, brushed, polished or chrome options.
- 07
Performance Testing

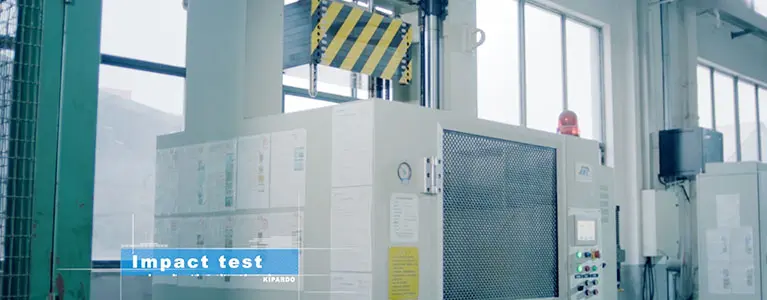

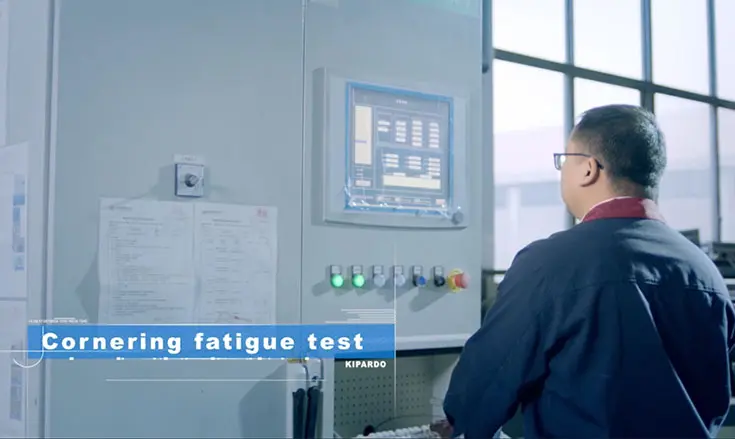

Radial fatigue, cornering fatigue, 13° impact and air-leak tests are carried out following JWL / VIA test items.
- 08
Packing & Export
Cartons, foam protection and palletizing with your branding, prepared for FCL or LCL shipment worldwide.
Tested to Global Wheel Standards
Strength you cannot see is the part that matters most. Our quality system combines material control, in-line inspection and destructive testing so importers can register and sell with confidence.
Controlled Casting & Machining
Every batch is traceable from alloy lot to finished wheel, giving you documented quality for each container.

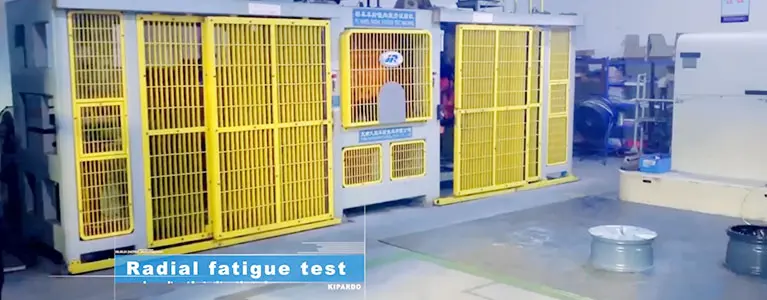

Radial Fatigue Profile
Load vs. cycles · illustrative- Radial fatigue
- Cornering fatigue
- 13° impact
- Air-leak
- Salt-spray (finish)
CNC Machining
X-Ray & Run-Out
Test Standards
Validation references internationally recognized wheel standards.
Kipardo Warranty
Every Kipardo wheel carries a 5-year / 100,000 km structural warranty and a 2-year warranty on all paint and chrome finishes.
Cast vs. Flow-Formed vs. Forged: Which Fits Your Market?
Choosing the right process determines your margin, your warranty exposure and how fast product sells. Use this comparison to plan a range that covers every price tier.
| Criteria | Cast Wheel | Flow-Formed Wheel | Forged Wheel |
|---|---|---|---|
| Manufacturing | Low-pressure casting of A356.2 alloy, T6 heat treated | Cast center; barrel spun and pressure-rolled under heat | Billet forged under high tonnage, then fully CNC machined |
| Typical weight vs. cast | Baseline | Typically 10–15% lighter | Typically 20–30% lighter |
| Strength & fatigue | Meets JWL / VIA test items for road use | Higher barrel strength from refined grain structure | Highest strength-to-weight ratio |
| Unit cost | Most competitive | Mid-range | Premium |
| Design flexibility | Mold-based; best for volume SKUs | Mold-based with lighter barrel | Custom sizes, offsets and finishes per order |
| Best for | Wholesale, replica & aftermarket retail | Enthusiast retail, SUV & performance upgrades | Luxury, motorsport & bespoke builds |
Figures are typical industry ranges. Final weight, load rating and cost depend on wheel size, design and fitment.
Alloy Wheel Manufacturer & Exporter Since 2010
Shanghai Rimax Industry Co., Ltd. is one of China's established alloy wheel manufacturers and exporters. Since 2010 we have built our reputation on three things buyers measure every season: consistent product quality, original wheel design and reliable production capacity.
Our Kipardo casting wheel factory is JWL verified, and our range covers low-pressure cast, flow-formed, forged, off-road and replica wheels. A dedicated customer service team supports importers, distributors and brand owners from fitment research to after-sales.
Design Library
New styles with 3D renderings and finish swatches for fast range planning.
Fitment Engineering
PCD, offset, center bore and load rating matched to your vehicle list.
Private-Label Packaging
Branded center caps, stickers, cartons and pallet labelling.
Export Support
Commercial documents and test reports prepared for customs and registration.
Questions From Wheel Importers
Is Rimax a wheel manufacturer or a trading company?
Which wheel types can Rimax supply?
What tests do Rimax alloy wheels pass?
What warranty do Rimax and Kipardo wheels carry?
Can Rimax produce OEM or private-label wheels?
Plan Your Next Wheel Program
Get the full Rimax catalog with sizes, fitments and finish options.
