Featured Solid Forged & Heavy-Duty Wheel Series
Explore our flagship engineered wheels featuring high-density 6061-T6 forging, customized CNC offsets, and tested JWL/VIA compliance ready for export dispatch.
Global Solid Forged Wheel Ecosystem: Structural Paradigm Shift
Analyzing structural dynamics, unsprung weight optimization, and the transition of tier-1 automotive programs from traditional cast frameworks to solid aerospace-grade forged structures.
Unsprung Mass & EV Dynamics
Modern electric vehicles demand heightened wheel load capacities ranging from 900 kg to over 1,200 kg per corner due to substantial battery pack weight. Solid forged wheels engineered from 6061-T6 aluminum deliver up to 30% reduction in rotational unsprung mass compared to gravity or low-pressure cast alternatives, directly boosting battery range efficiency and reducing suspension wear.
Zero Porosity Metallurgical Integrity
Unlike casting processes where hydrogen porosity, micro-shrinkage, and slag inclusions can occur beneath the surface, solid forged wheels are pressed from continuous cylindrical billet billets under 10,000 to 12,000 tons of hydraulic pressure. This aligns the metallic grain structure along radial force vectors for extreme impact absorption.
Tier-1 Engineering Compliance
International regulatory frameworks, such as Japan's JWL/VIA standards, the Society of Automotive Engineers (SAE J2530), and Europe's TÜV, demand rigorous destructive test curves. Solid forged architecture ensures reliable compliance with radial fatigue tests exceeding 1,000,000 cycles and cornering fatigue tests surpassing 100,000 cycles without yield failure.
Metallurgical Engineering: Solid Forged vs. Flow-Formed vs. Low-Pressure Cast
Understanding technical distinctions across production methodologies enables commercial procurement teams to align price points, tensile thresholds, and warranty exposures.
| Evaluation Parameter | Solid Monoblock Forged (6061-T6) | Flow-Formed / Rotary Spun | Low-Pressure Cast (A356.2) |
|---|---|---|---|
| Raw Material Foundation | Solid extruded 6061 aerospace billet ingot | Cast preform barrel (A356.2 alloy) | Molten virgin aluminum alloy (A356.2) |
| Manufacturing Principle | 10,000T closed-die forge + 5-axis CNC | Low-pressure cast center + spun rolling | Bottom-fill mold under pneumatic pressure |
| Tensile Strength (Rm) | ≥ 310 - 330 MPa | ≥ 240 - 270 MPa (barrel area) | ≥ 205 - 230 MPa |
| Yield Strength (Rp0.2) | ≥ 275 MPa (Optimal fatigue resistance) | ≥ 180 - 200 MPa | ≥ 150 - 170 MPa |
| Elongation Rate (A5) | 10% - 14% (Ductile impact absorption) | 6% - 8% | 3.5% - 5% |
| Weight Differential Ratio | Baseline benchmark: 20% to 30% lighter | Approximately 10% to 15% lighter | Standard industry baseline |
| Production Flexibility | Zero mold charge; fully custom offset & PCD | Dedicated steel tool mold required | Dedicated steel tool mold required |
Advanced Manufacturing: Shanghai Rimax & Kunshan Industry Synergy
Combining high-tonnage multi-directional forging capabilities with automated 5-axis robotic CNC cells to supply international distribution networks with rapid cycle turnarounds.
Automated Flexible Tooling Hubs
Our Kunshan facilities feature high-speed CNC clusters capable of sub-millimeter precision. By executing custom CAD/CAM programs directly from 3D model files, PCD bolt circles, center bores, and caliper clearance back-pad profiles can be customized within hours, bypassing conventional tooling lead times.
Supply Chain Cluster Synergy
Situated in the Yangtze River Delta industrial corridor, our manufacturing infrastructure benefits from direct proximity to specialized alloy treatment suppliers, certified aerospace billet foundries, and automated electrostatic powder coating lines. This concentration reduces domestic logistical delays and secures volume pricing on premium primary metal.
Closed-Loop Sustainable Aluminum
Precision CNC machining of solid forged blanks yields significant aluminum swarf. Our facilities utilize closed-loop induction re-melting that recycles clean 6061 chips back into secondary industrial billets, lowering carbon output and helping automotive partners meet rigorous Corporate Sustainability and ESG reporting metrics.
Mission-Critical Application Scenarios
From high-torque electric powertrain systems to extreme off-road terrain, solid forged wheels provide the structural resilience demanded across distinct automotive operating profiles.
Electric Super-Saloons & SUVs
Instantaneous torque curves in dual-motor and quad-motor electric vehicles place severe rotational shearing forces on wheel bead seats. Our solid forged wheels incorporate engineered knurled bead seats to completely eliminate tire slippage under full-throttle acceleration, preserving balancing accuracy at track speeds.
Expedition Overland & 4x4 Defense

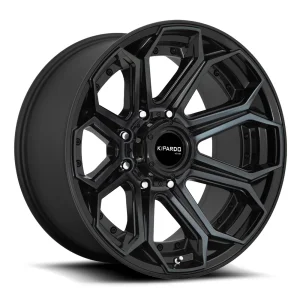

Heavy platforms such as the Toyota Land Cruiser, Lexus GX series, and modified pickup trucks carry heavy suspension loads across rock crawl paths and desert corrugations. Solid forged monoblock blanks feature thicker outer rim flanges and reinforced spoke roots to prevent hairline fractures during high-velocity boulder strikes.
Luxury Bespoke & Tuner Brands
Boutique performance houses require low-batch runs with deep concave profiles, aggressive negative offsets, brushed visual treatments, and multi-piece modular assembly. Solid forged engineering enables flexible batch production from 4 pieces upwards, accommodating custom center bores and tailored brake package profiles.
Global Enterprise Procurement & Sourcing Governance
A breakdown of validation metrics, non-destructive testing (NDT), surface finish verification, and logistical documentation for international volume buyers.
Non-Destructive Testing (NDT)
Before CNC finishing, forged blanks undergo ultrasonic flaw detection to identify internal voids, inclusions, or crystalline grain boundary tears. Once machined, coordinate measuring machines (CMM) evaluate run-out, concentricity, and bolt-seat tapers within ±0.05 mm tolerances.
Salt-Spray & Adhesion Testing
Finished wheels are subjected to 1,000-hour neutral salt-spray (CASS/NSS) corrosion evaluations, cross-hatch paint adhesion tests, and chemical resistance checks (brake fluid, tire cleaner). This supports our standard 2-year warranty on all polished, painted, and diamond-cut surfaces.
OEM Private Label & Packaging
We provide full white-label integration for distributors, including customized alloy center caps, precision laser-etched rim lips, personalized valve stems, reinforced corner-edge export cartons, and palletization designed for optimal 20GP/40HQ container cube utilization.
Frequently Asked Questions: Technical & Sourcing Specifications
Comprehensive responses to engineering, testing, production turnaround, and custom design inquiries from automotive supply chain directors and brand managers.
What is the standard manufacturing lead time for custom solid forged wheel programs?
For custom engineering and bespoke small-batch forged wheels (1 to 20 sets), our standard production timeframe is approximately 14 to 21 working days following final 3D CAD drawing and FEA simulation sign-off. High-volume procurement runs involving dedicated billet sourcing and customized finish lines are delivered within 30 to 45 calendar days, supported by complete inspection documentation prior to seaport staging.
Can you manufacture solid forged wheels to clear extreme big brake kits (BBK)?
Yes. Every solid forged wheel CAD program is mapped directly against vehicle-specific hub-spindle assemblies and caliper clearance envelopes. By taking your brake rotor diameter, caliper depth, and profile dimensions, our engineering team optimizes the back-pad cut and spoke concavity profile to provide at least 3 mm to 5 mm of dynamic clearance without requiring wheel spacers.
What specific destructive test regimes are conducted to certify load ratings?
Every wheel profile undergoes Finite Element Analysis (FEA) followed by three core physical destructive tests per JWL/VIA and SAE J2530 protocols: the Dynamic Cornering Fatigue test (simulating lateral cornering loads), Dynamic Radial Fatigue test (simulating rolling straight-line impacts over prolonged cycles), and the 13-degree / 30-degree Lateral Impact test (evaluating rim bead fracture resistance under acute curbside shock).
What is the difference in performance between 1-piece Monoblock and 2-piece / 3-piece modular forged wheels?
Monoblock forged wheels are milled from a single solid forged 6061-T6 aluminum blank. They deliver the highest structural stiffness and the lowest overall unsprung weight, making them the preferred choice for circuit racing and OEM high-performance models. Modular 2-piece and 3-piece wheels use forged centers bolted or welded to spun aluminum rim barrels, allowing wider rim configurations, custom offsets, deep lip designs, and cost-effective outer lip replacement in motorsport environments.
What surface finishes and anti-corrosion options are available for volume production?
We provide a comprehensive selection of finishes, including full mirror hand-polishing, multi-directional directional brushing, anodized colorways (bronze, champagne, black, gunmetal), diamond-cut machine face detailing, transparent candy powder clears, and liquid electrostatic multi-layer paint. All finishes undergo rigorous multi-chamber humidity and salt-spray testing to withstand harsh winter road salts.
How does Shanghai Rimax handle private labeling, packaging, and custom brand assets?
We offer turnkey private-label solutions. We can engrave your custom registered trademark directly onto the wheel spoke or outer lip, supply CNC billet aluminum center caps bearing your brand logo, and pack the finished wheels in custom-printed, high-burst-strength cartons. Pallet shipments are shrink-wrapped with waterproof membrane coverings and edge-protectors for secure marine container transport.

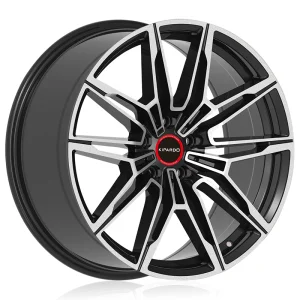

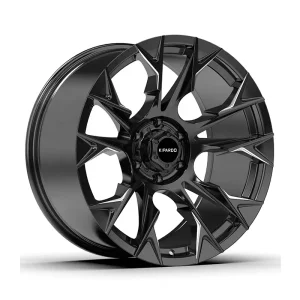

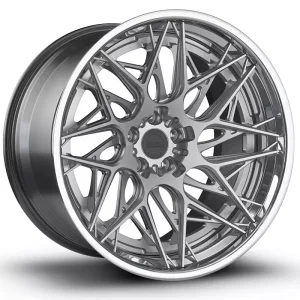

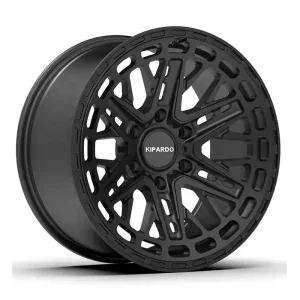

Comprehensive Catalog: Cast, Concave & Custom Forged Options
Explore additional options in our alloy rim lineup, from cost-effective high-volume casting designs to fully custom concave solid forged programs.
Consult with Our Wheel Engineering Directorate
Whether planning an OEM-spec replenishment schedule, developing custom offsets for specialized 4x4 armor platforms, or engineering lightweight private-label monoblock forged designs, our technical specialists in Kunshan and Shanghai stand ready to assist.
